NW Hygiene and Medical

Loptex supplies sustainable and suitable solutions for the significant reduction of contamination on finished webs in Spunlace processes. One of the key success in these applications is the supply of embedded technologies which keep into account the critical conditions of the industrial environment. The final products are made for hygiene and medical purposes. They have to guarantee purity, delicacy and comfort to the human skin.

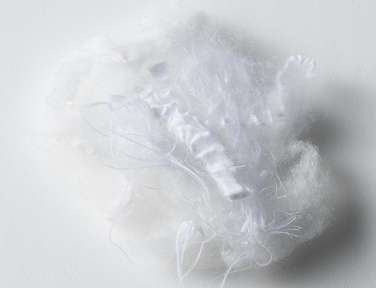

Contamination may be:

Packaging material

Black spots

Black fibres

Colour polypropylene

Grease deposit

Wood

Yellow fibres

Melted bunch of fibres

EASYLINK EXA NW

The Easy Link EXA offers a space saving solution to existing and new blow room lines.

Features


Upward fibres flow


Perfect fitting on existing fibre stream


Modular concept


Minimal loss of nonfaulty material


Automation


Option


Remote control


Link to EXA Class (Data Acquisition and Classification System)


Techical specification


Max production:

800 Kg/h (1200/2000 Kg/h on demand)


Power supply:

400 VAC ± 10% 50Hz.


Installed power:

1 kW (EXA system)
1 kW (Waste extraction system)


Air consumption:

0,6/1,2 NL (per contamination removal)


Compressed air supply:

approx. 6-8 bars


Dimensions:

Height 3270 mm
Width 2070 mm
Depth 750 mm


Loptex reserves the right to change dimensions and technical specifications. Copyright reserved.

EXA Class

EXA Class is a Data Acquisition and Contamination Classification System. It downloads statistical data and contamination images from the Sorter units. It classifies the contamination according to colour and size. It provides important quality information on processing material.
